This is a black sand titanium iron ore processing plant. Ilmenite is often associated with valuable minerals, and industrial separation can simultaneously recover zircon and monazite. Complete plant is configured with the below machines: feeder, trommel screen, belt conveyor, slurry pump, magnetic separator, spiral chute, shaking table, dryer.

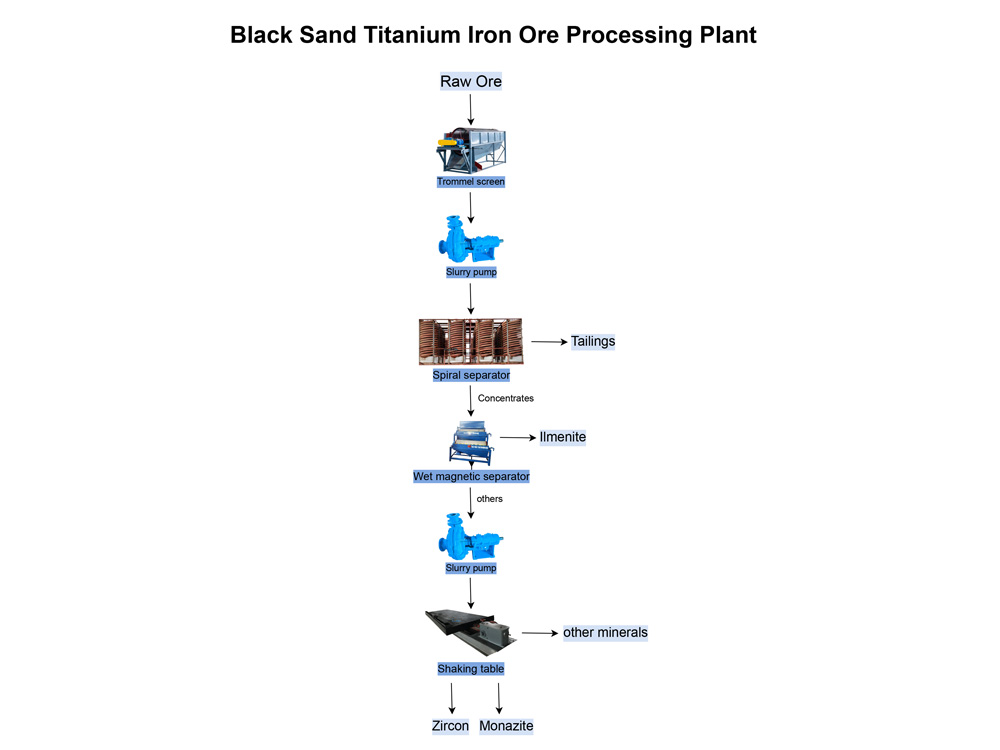

Flowchart explanation as below:

1. Excavator or Loader feed raw sand to raw ore bin, then through a vibrating feeder to feed trommel screen.

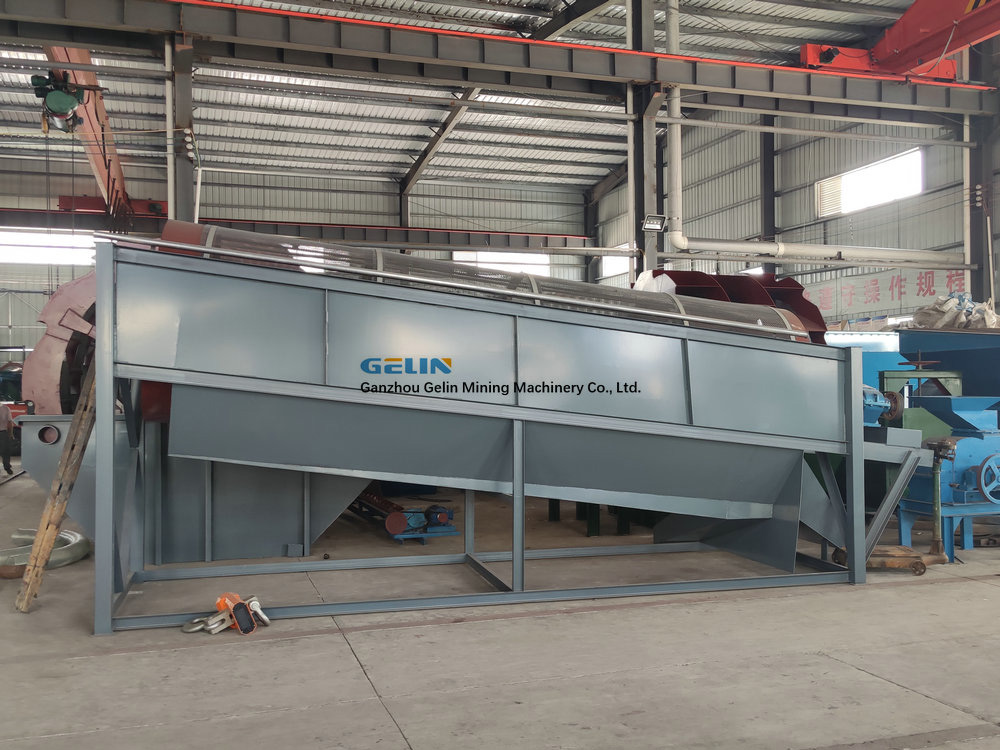

2. Trommel screen with one layer screen with 2mm mesh size, in order to remove above 2mm impurities.

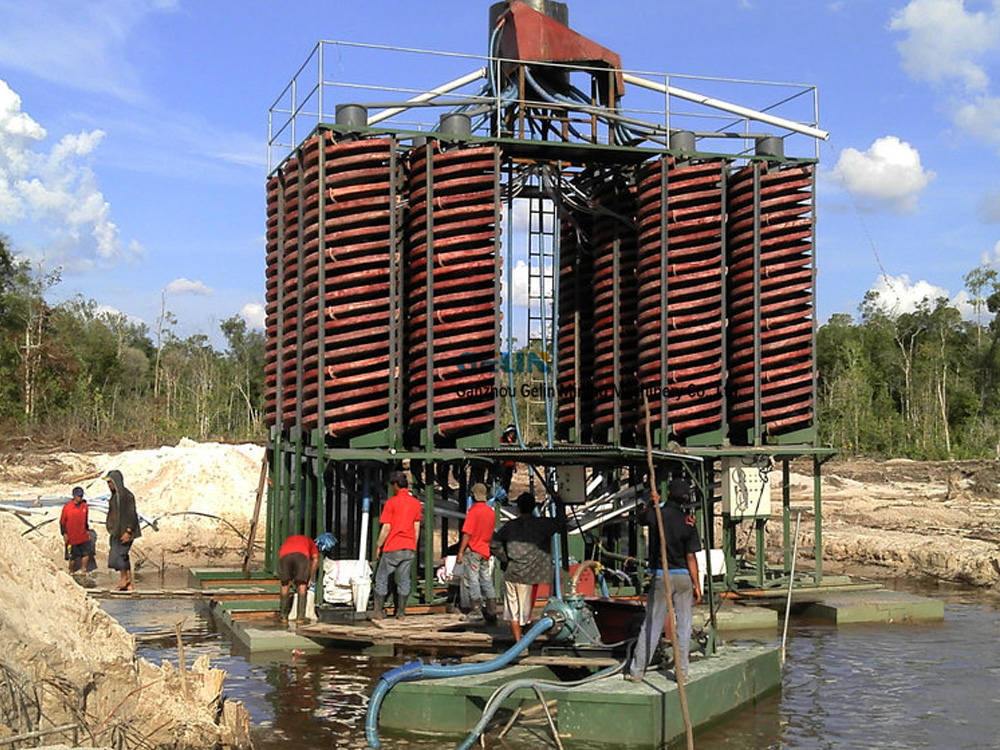

3. Below 2mm go to a group of spiral chutes by slurry pump, through gravity separation method to remove light minerals.

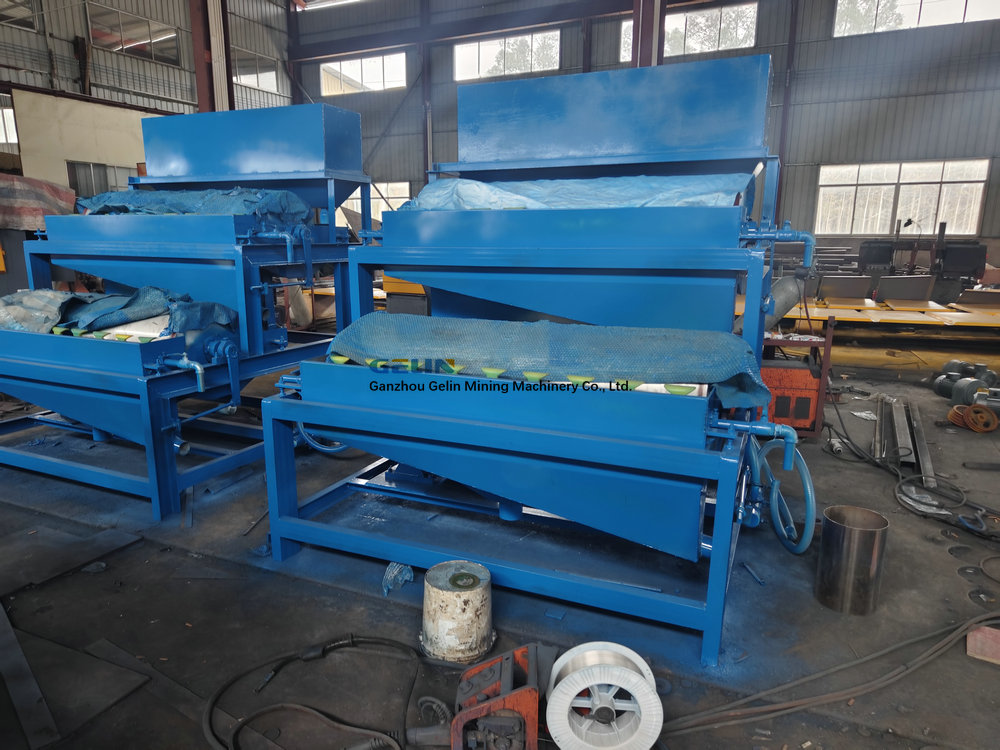

4. Concentrates of spiral chute are sent to wet magnetic separator for separating out ilmenite.

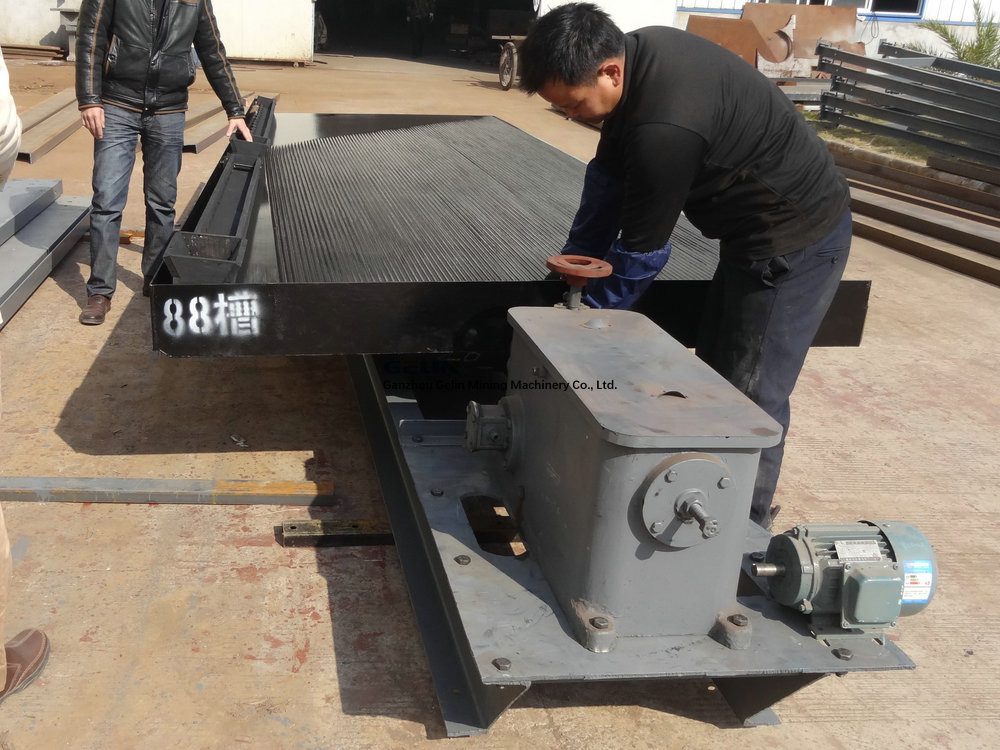

5. Others of magnetic separator are sent to shaking table by slurry pump for recover zircon and monazite by gravity principle.
