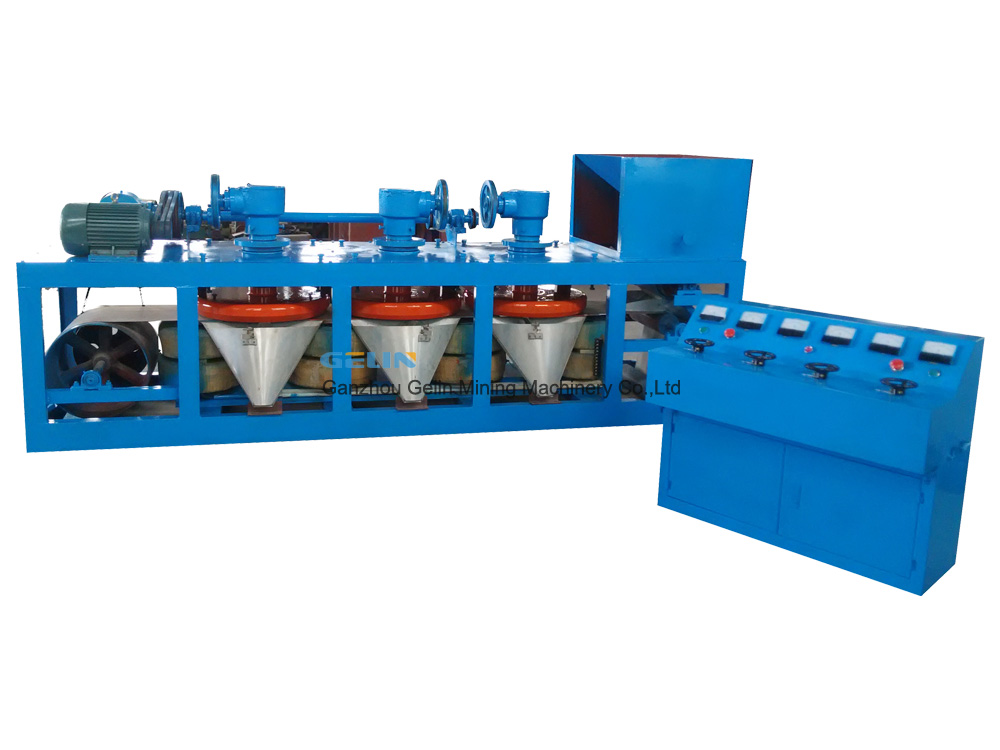

Tantalum Niobium Separator is the hree-disc electromagnetic separator. It is sorting mineral size less than 2-3mm of weakly magnetic minerals and rare metal ore selection, it is a very important mineral processing equipment. Three-disc electrmagnetic separator have 3 models.
Three-disc electromagnetic separator is for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals, can achieving efficient separation of minerals can form different intensity magnetic disk by adjusting the excitation current levels, can also be adjusted each level disk and sensing distance between dressing grain is to get different magnetic induction intensity, reaching a one-time separation of various minerals. This device is widely used in ilmenite, monazite, tungsten, tin, tantalum, iron ore and other minerals with magnetic and non-magnetic dry sorting.
Features
The equipment have reasonable structure, small footprint, simple operation and maintenance, its one-time separate variety of ferromagnetic minerals, weakly magnetic, non-magnetic and so on. Operations can be adapted to water-lack mines.
Parameter
Model | Unit | 3PC-500 | 3PC-600 | 3PCX600 |
Magnetic intensity | Hauteur | Distance to beltsurface 2mm Disk teeth 1700 | Distance to beltSurface 2mm Disk teeth 1800 | Distance to belt 2mm Disk teeth 2000 |
Number of magnetic disk | Piece | 3 | 3 | 3 |
Diameter of magnetic disk | mm | 500 | 600 | 600 |
Revolution of magnetic disk | r/min | 25-40 | 22-38 | 22-32 |
Power supply | V | 380 | 380 | 380 |

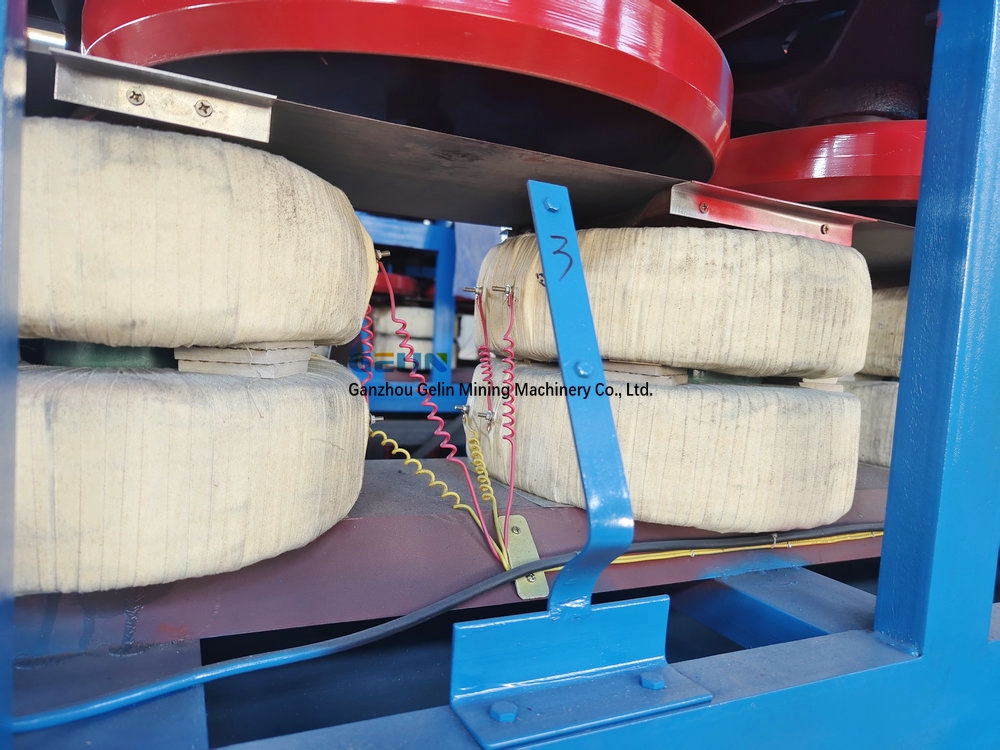

Exciting coil | Unit | 4 | 4 | 4 |
Matching motor | kw | 0.75 | 1.5 | 1.5 |
Exciting power | kw | 1.5 | 1.6 | 1.6 |
Coil temperature rise | °C | 65 | 65 | 65 |
Rated currentof coil | A | 1.1-1.8 | 1.2-1.9 | 1.2-2.2 |
Duty rating | Continuous | Continuous | Continuous | |
Feed width | mm | 210 | 300 | 300 |
Feed size | mm | ≤2 | ≤2 | ≤2 |
capacity | kg/h | 100-500 | 120-800 | 80-800 |
Overall Size | mm | 2800×800×1220 | 3200×870×1160 | 3150×900×1250 |
Weight | kg | 1900 | 2200 | 2300 |
