Belt Conveyor

Belt Conveyor is the most ideal high-efficiency continuous conveying equipment for minerals. According to the requirements of the conveying process, it can be transported by single or multiple belt conveyors or with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layouts of production lines.It's widely used in sandstone yard, mining, metallurgy, mineral processing, coal mining and other industrial sectors.

Get A Quote

Product Details

Features

1.Large amount of transportation, no deviation;

2.Simple lightweight structure with less wear and tear ,standardized parts,quickly operation;

3.Long conveying distance, stable transportation and low energy consumption;

4.The material and the conveyor belt have no relative movement which avoid damage to the conveyed object;

5.it can adapt to the ambient temperature -20 ° C to +40 ° C, and the temperature of the conveying material is below 50 ° C.

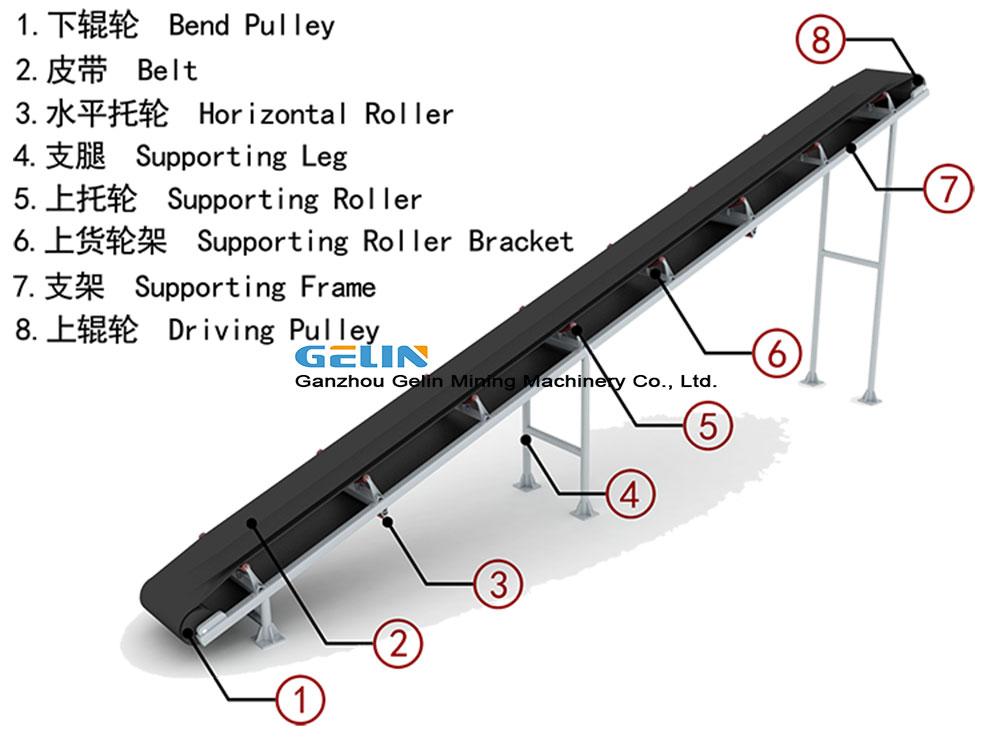

Structure

Parameter

Width(mm)	Length(m)/ Power (Kw)			Speed (m/s)	Capacity(t/h)
400	≤12/2.2	12-20/2.2-4	20-25/3.5-7.5	1.25-2.0	30-60
500	≤12/3	12-20/3-5.5	20-30/5.5-7.5	1.25-2.0	40-80
650	≤12/4	12-20/4-5.5	20-30/5.5-11	1.25-2.0	80-120
800	≤10/4	10-15/4-5.5	15-30/5.5-15	1.25-2.0	120-200
1000	≤10/5.5	10-20/5.5-11	20-40/11-22	1.25-2.0	200-320
1200	≤10/7.5	10-20/7.5-15	20-40/15-30	1.25-2.0	290-400

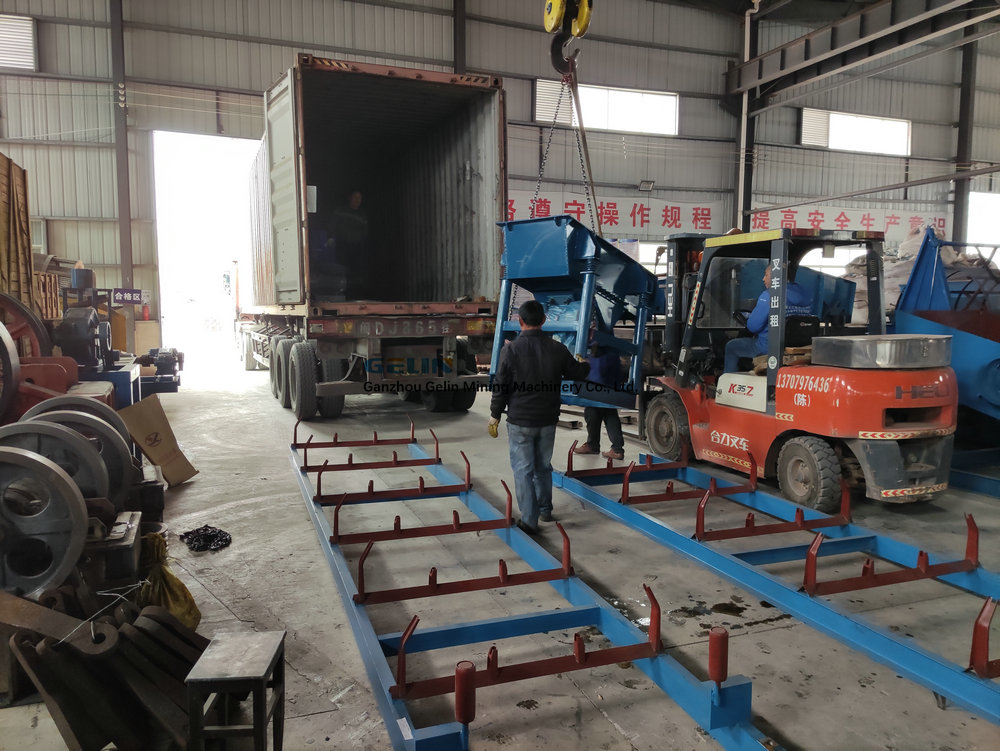

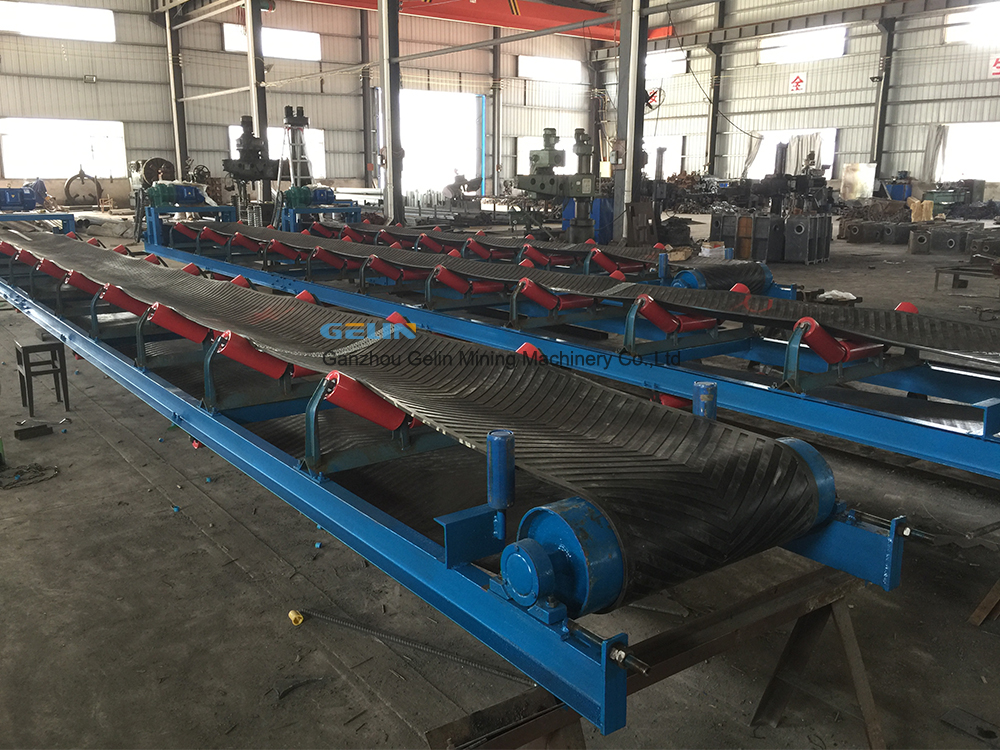

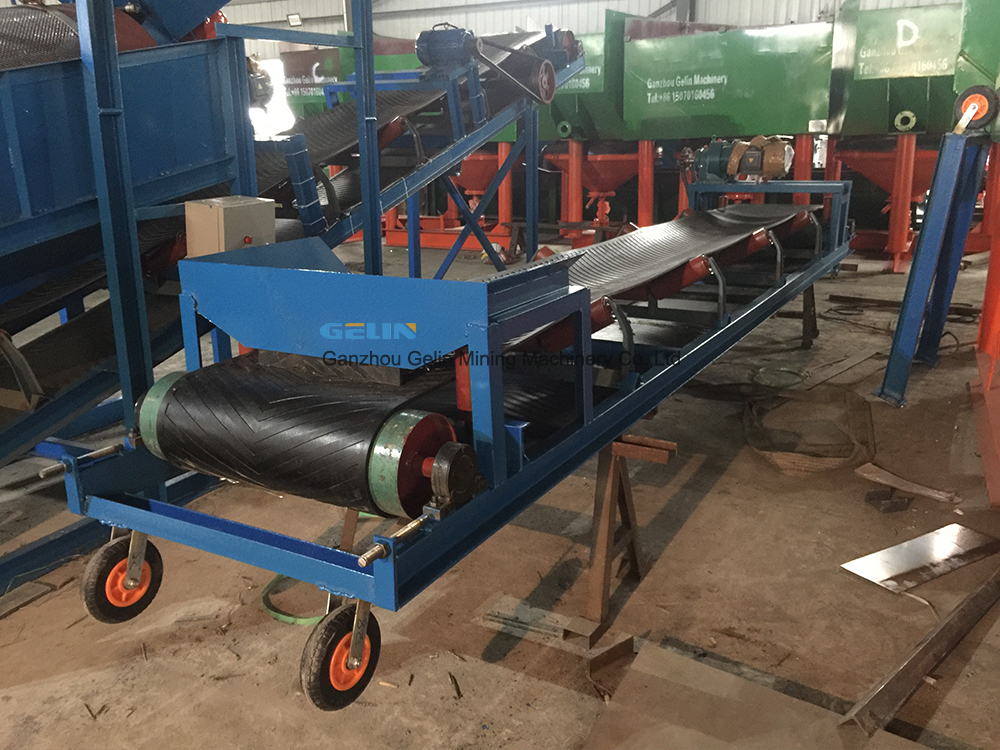

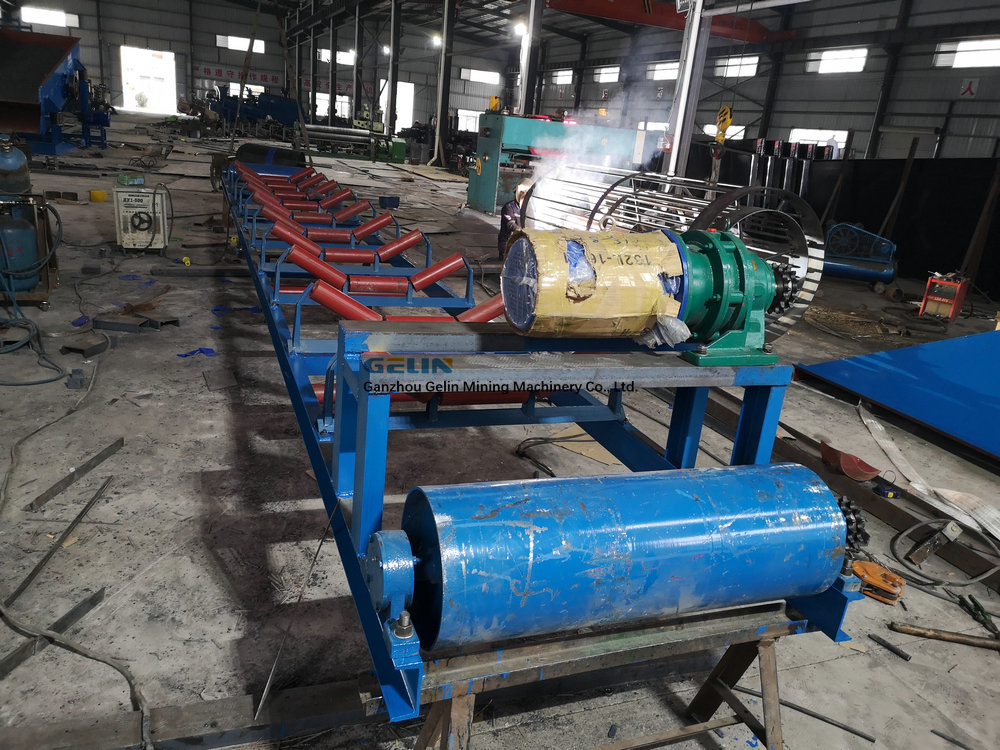

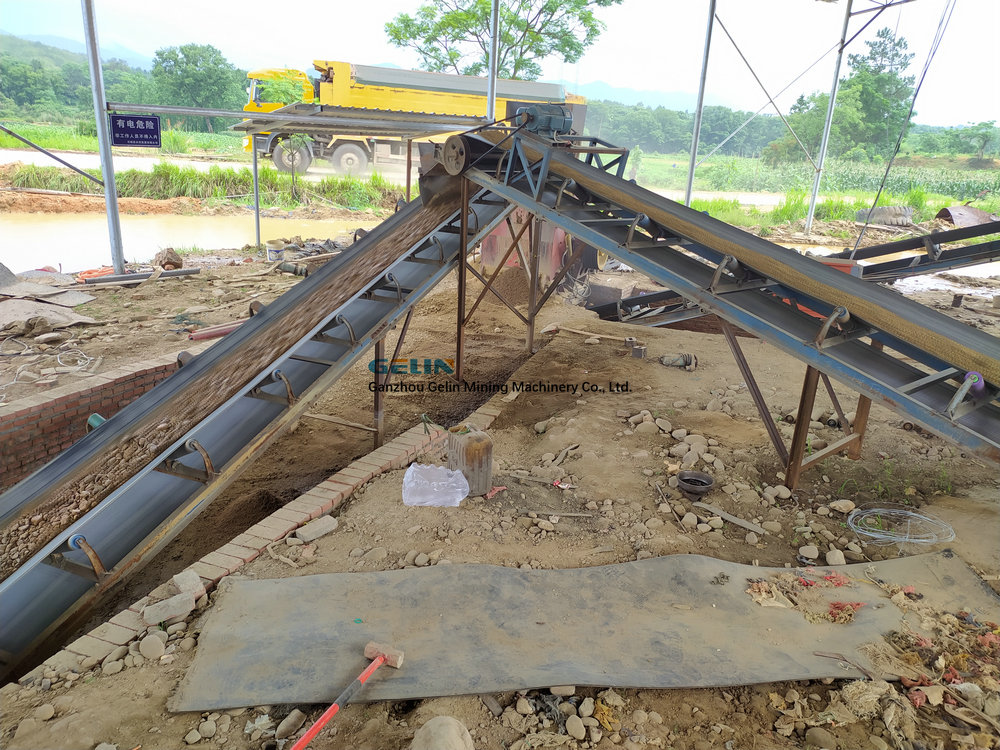

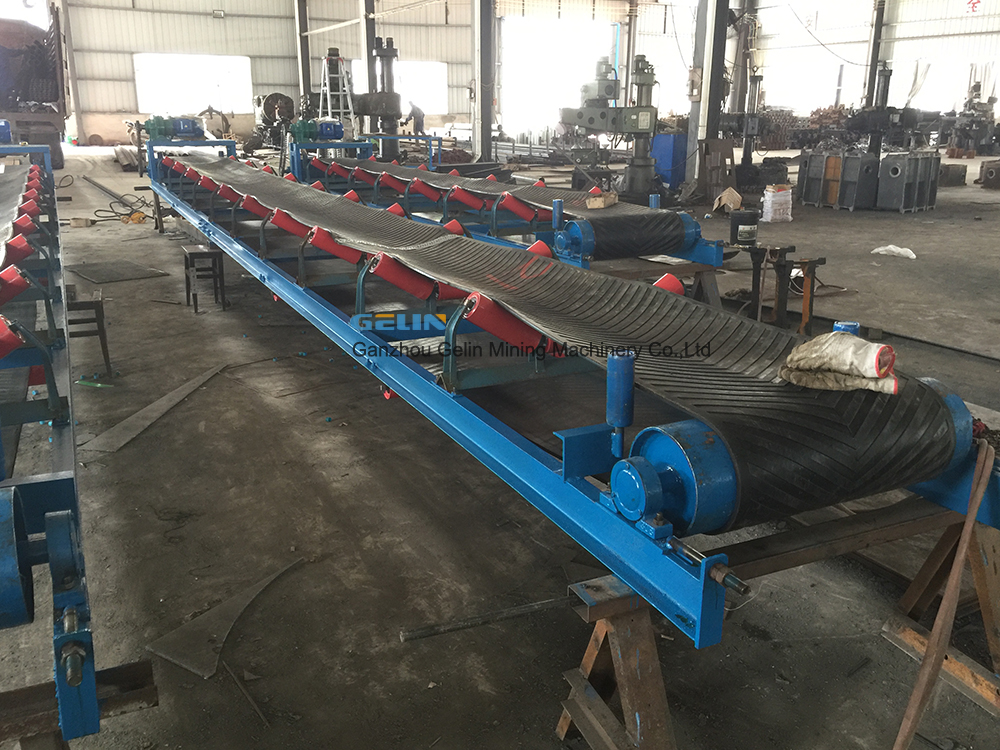

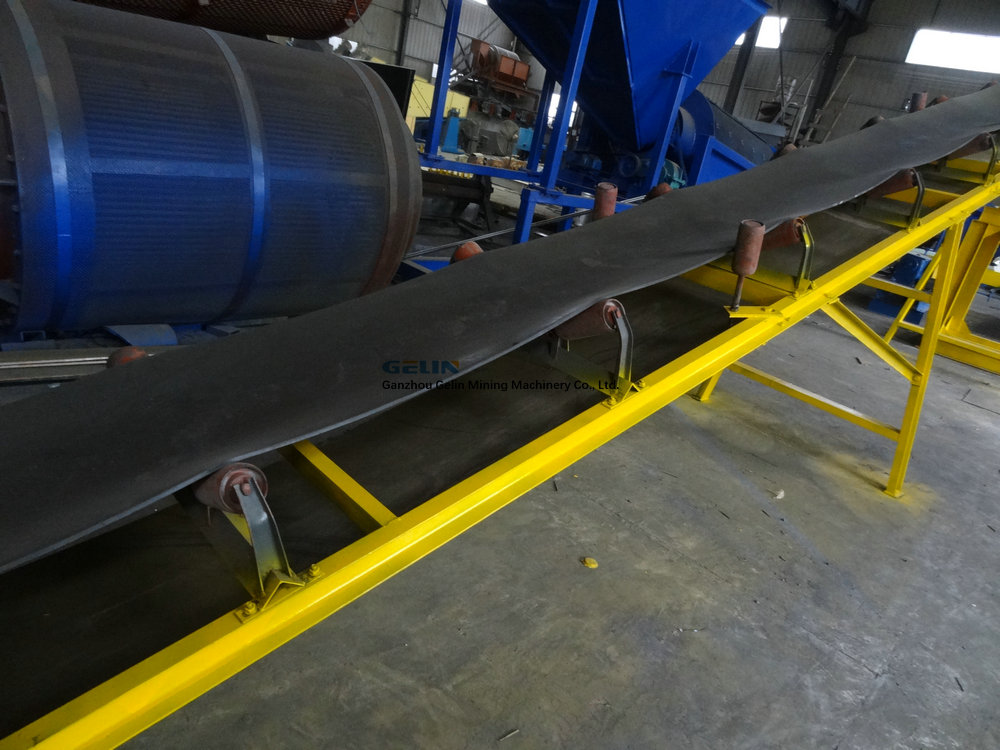

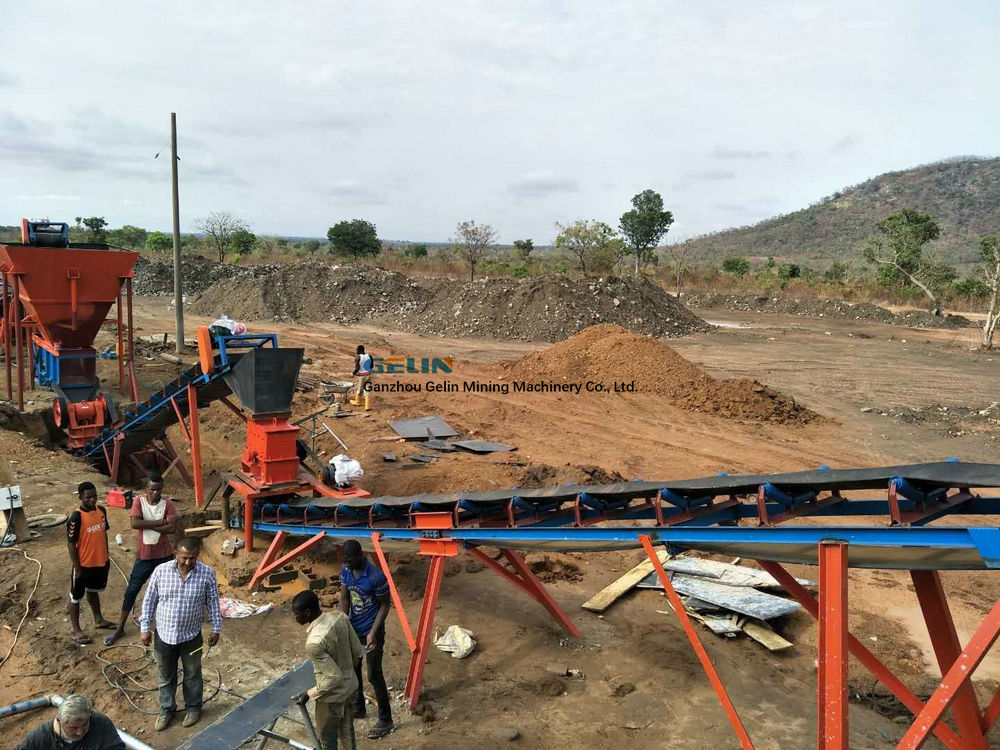

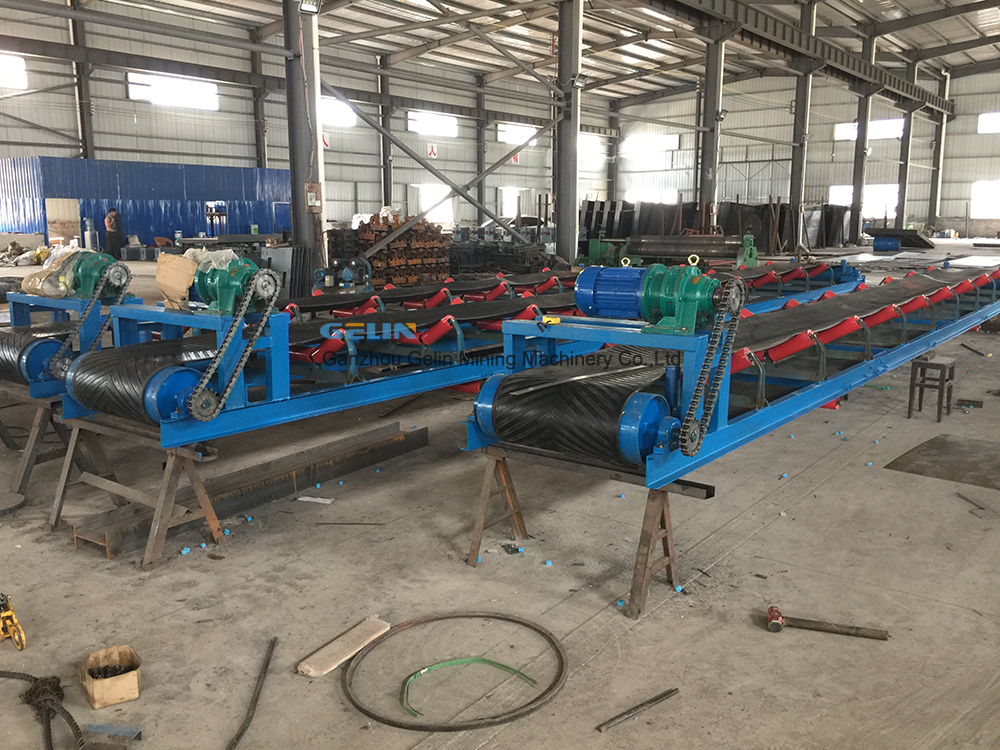

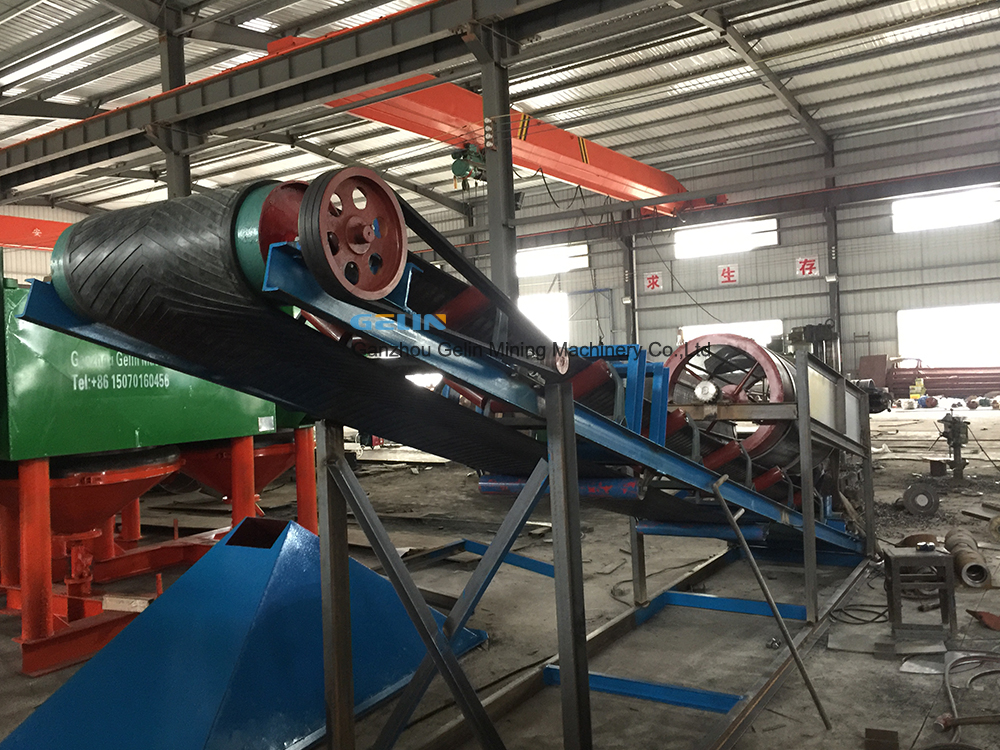

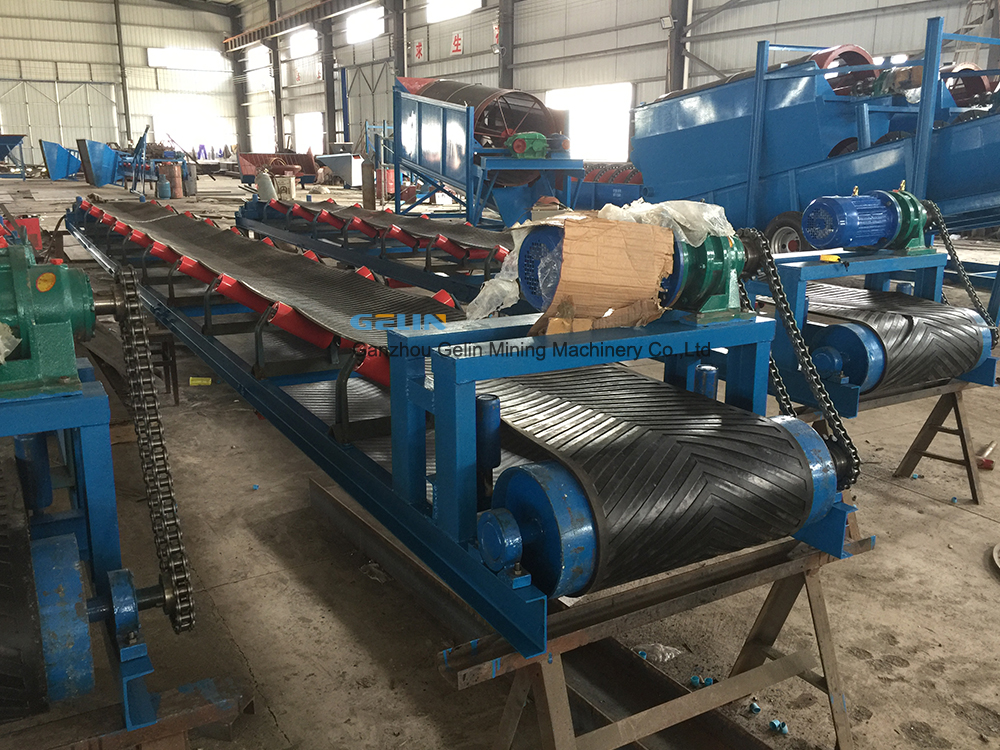

Pictures
