IGBT Small Capacity Medium Frequency Induction Melting Furnaces adopts IGBT as the core inverter, it mainly used for melting scrap copper, brass, bronze, aluminum, gold, silver, zinc, iron, steel, stainless steel, aluminum, gold ore, copper ore, other nonferrous metals, ferrous metals and metal alloys. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.
The melting furnace capacity is normally from 1 Kg to 150 Kg.
Features
1. Fast heating and wide heating
The minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).
2. Small size and light weight
has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space. Sound operational environment: it is favorable for environmental protection, conservation of energy and safety operation, which is free of any noise, exhaust gas and dust.
3. Multiple type
Have automatic pouring type and push out type and fixed type gold smelting equipment.
4. High effectiveness and Save electric
The furnace can save 30% electric than election tubes.and also can save 20% electric than KGPS. The Gold Melting Furnace has such features as uniform heating (it is applicable to adjust the spacing of the inductions coil to ensure the appropriate temperature as required by each part of work piece).fast warming and limited oxic horizon and can guard against any waste after annealing.
5. Easy installation and operation
The Gold Melting Furnace can be used once it is connected with power source, inductions coil as well as water supply pipe and rising pipe: it is small in size and light in weight: you can learn to operate it within several minutes.
6. Comprehensive protection
The Gold Melting Furnace has such functions as over voltage. Over current, overheat and water shortage alarm indications as well as automatic control and protection.
7. Temperature control
The machine equipped the temperature control system, which can let you control the temperature going at real time.
The Power Supply Features:
1.The Power Unit is based on IGBT, imported from Germany;
2.High power factor, and energy efficient;
3.Heating duty running, 24 hours 100% full loading;
4.Easier and more safe operation comparing with the traditional oil/gas heaters;
5.Timing function applied for heating duration setting, adjustable (0.1s-99.9s)
Product Parameters
| Model | 15A | 25A | 35AB | 45AB | 60AB | 80AB | 100AB | 120AB | 140AB | 160AB |
| Power(KW) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 70 | 90 | 110 |
| Voltage (V) | 220 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Input Current(A) | 23 | 36 | 51 | 23 | 36 | 51 | 68 | 105 | 135 | 170 |
| High Frequency(KHZ) | 30~50 | |||||||||
| Mid-Frequency (KHZ) | 1~15 | |||||||||
| Cooling Hydraulic Pressure(Mpa) | 0.2 | 0.2 | 0.3 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Melting Capacity (KG) | 1~2 | 1~4 | 1~8 | 1~15 | 1~25 | 1~40 | 1~50 | 1~100 | 1~120 | 1~150 |
| Melting Time (MIN) | ≤ 5 | ≤ 5 | ≤ 10 | ≤ 15 | ≤ 20 | ≤ 30 | ≤ 40 | ≤ 40 | ≤ 50 | ≤ 60 |
| Weight(KG) | 15 | 25 | 35 | 70 | 70 | 90 | 120 | 150 | 180 | 230 |

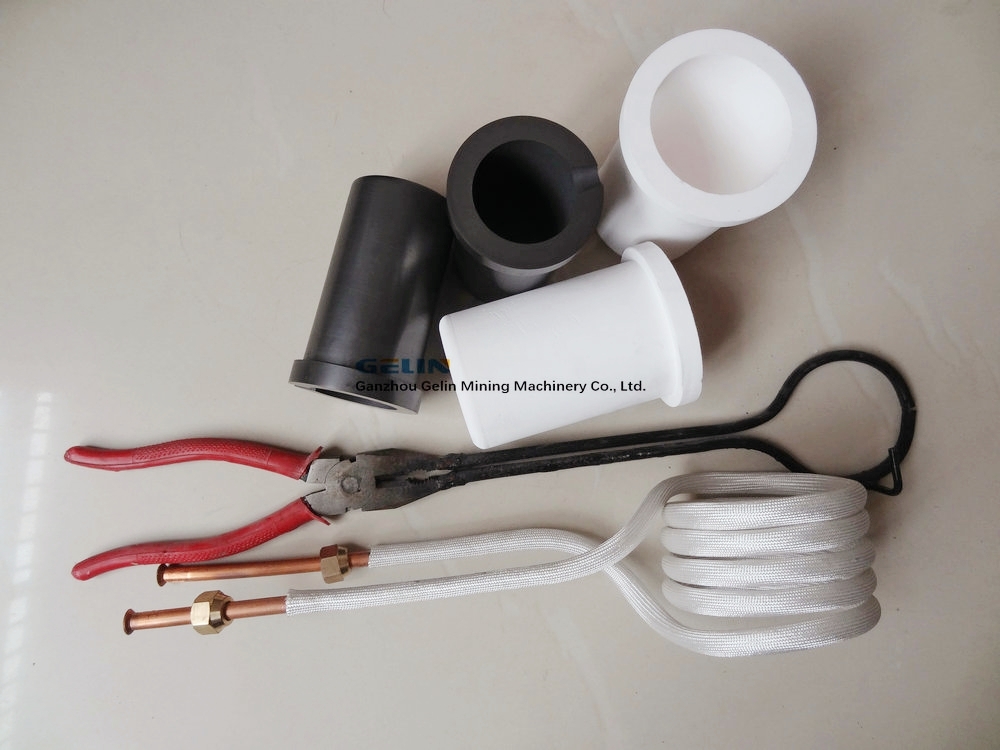

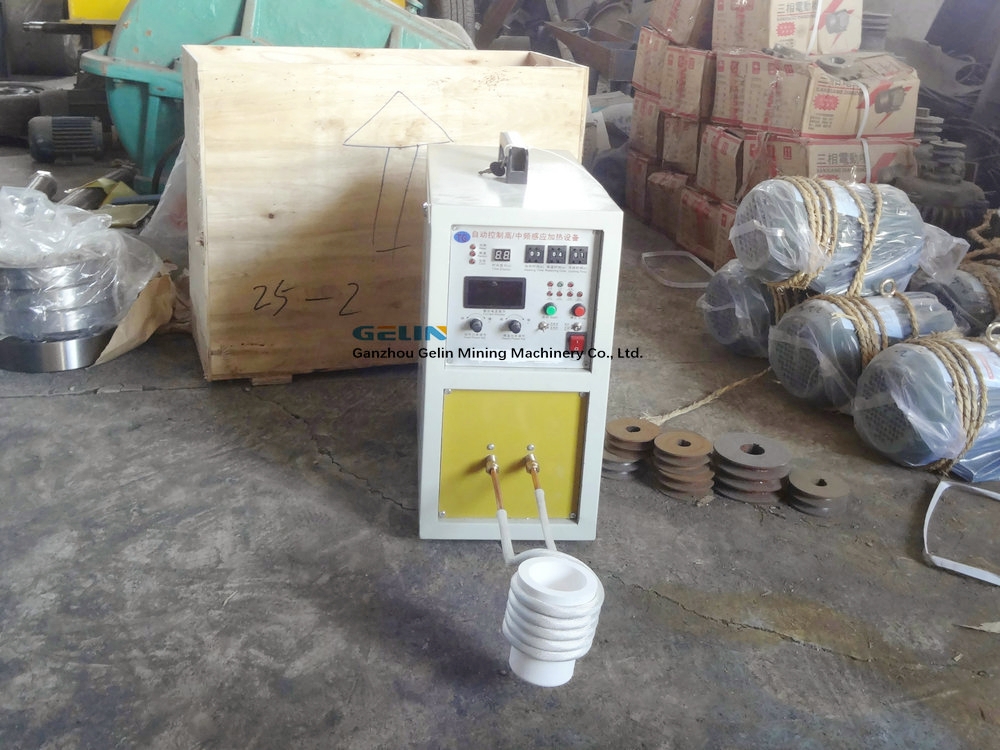

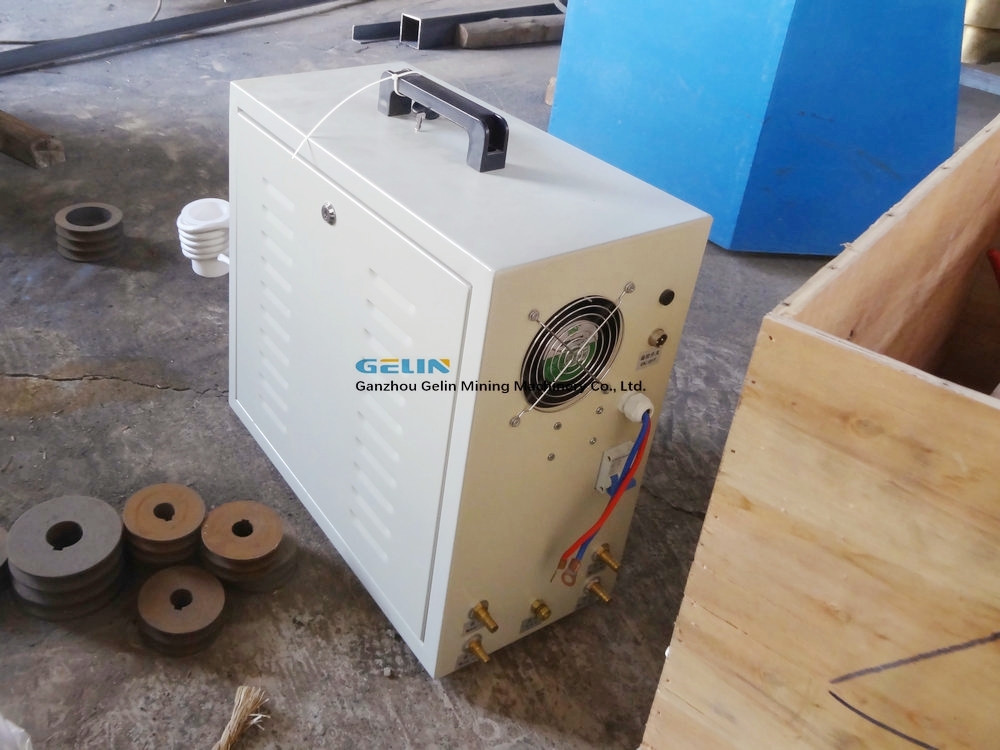

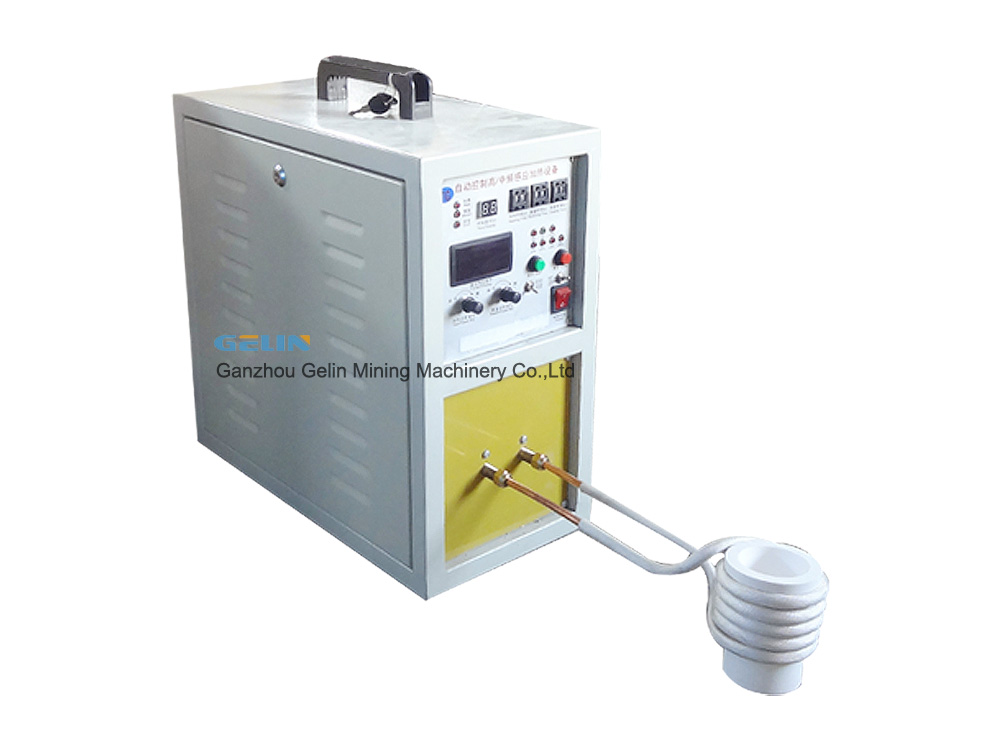

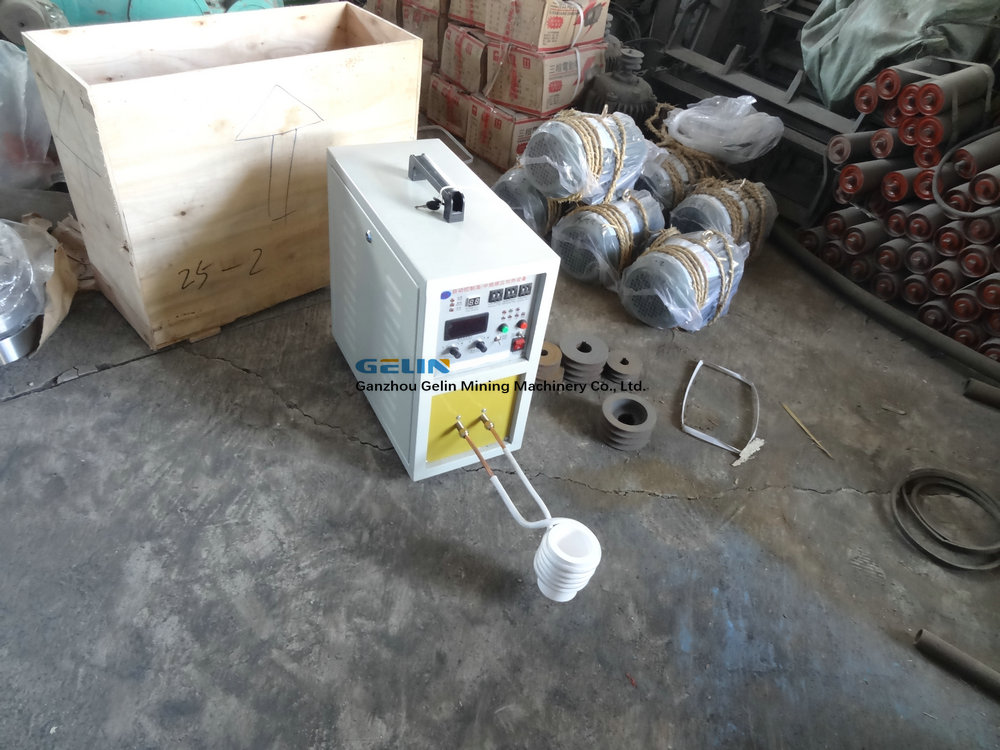

Detailed Photos
