Rotary dryer is mainly composed of rotary body, lifting plate, transmission device, supporting device and sealing ring.

Features

1). Reasonable structure,convenient operation.

2). Excellent production, high output.

3). High degree of automation to achieve the feeding, heating, with high security.

4). Low energy consumption.

Working Principle

The material is sent to the hopper by belt conveyor or bucket elevator, and then the feeder through the hopper enters the feeding end through the feeding pipe. The slope of the feeding pipe should be greater than the natural inclination of the material, so that the material can flow smoothly into the mine dryer. The dryer cylinder is a rotating cylinder slightly inclined to the horizontal line. The material is added from the higher end, and the heat carrier enters from the lower end and comes into countercurrent contact with the material, and there are also heat carriers and materials that flow together into the cylinder. With the rotation of the cylinder, the material runs to the lower end under the action of gravity. In the process of moving forward in the cylinder, the wet material is directly or indirectly given by the heat carrier, so that the wet material can be dried, and then sent out at the discharge end through a leather belt machine or a screw conveyor.

Product Parameters

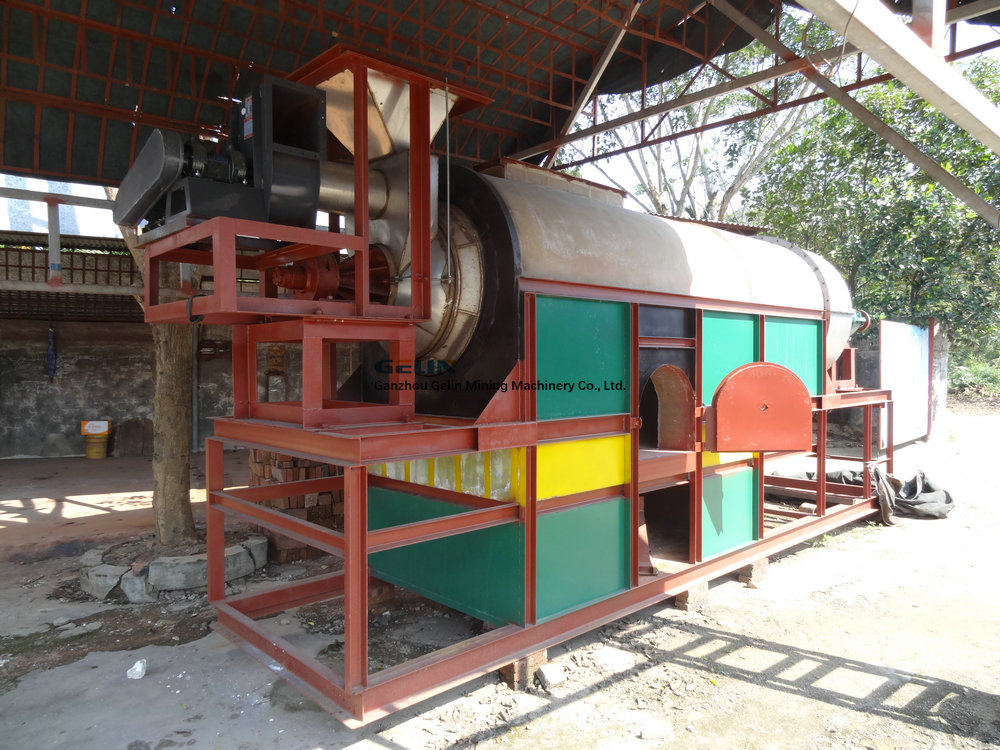

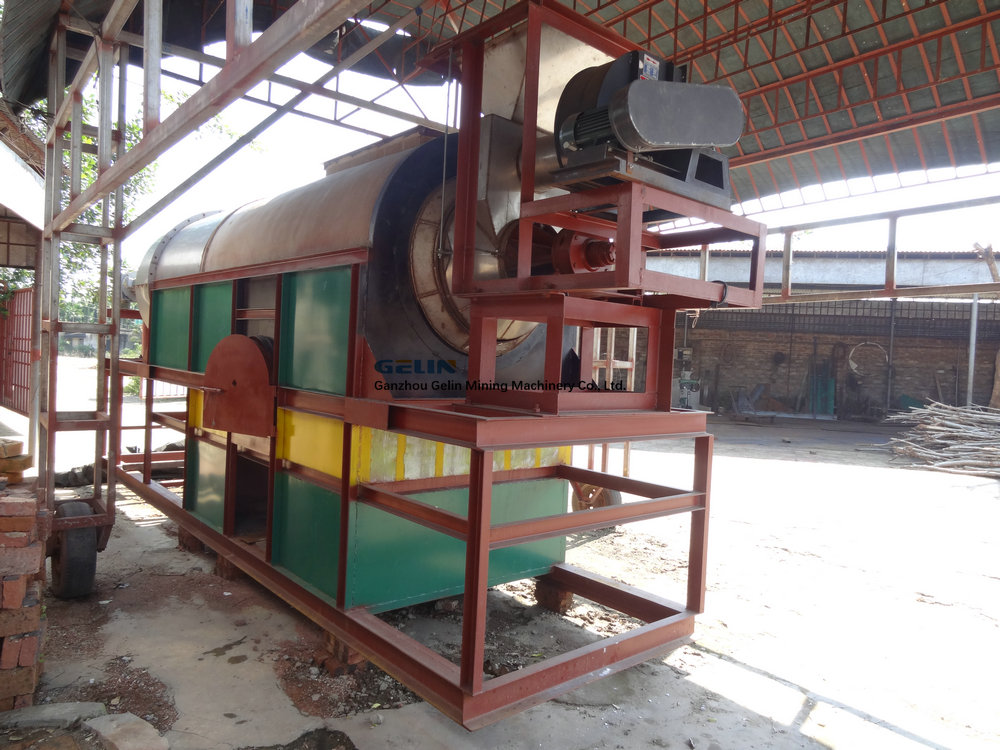

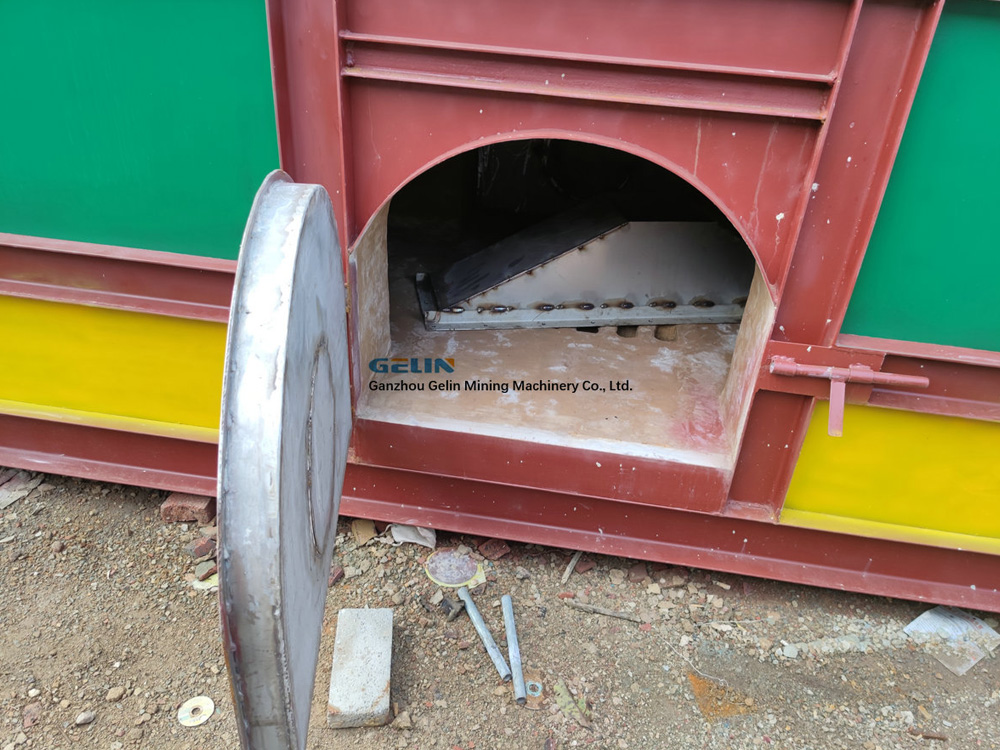

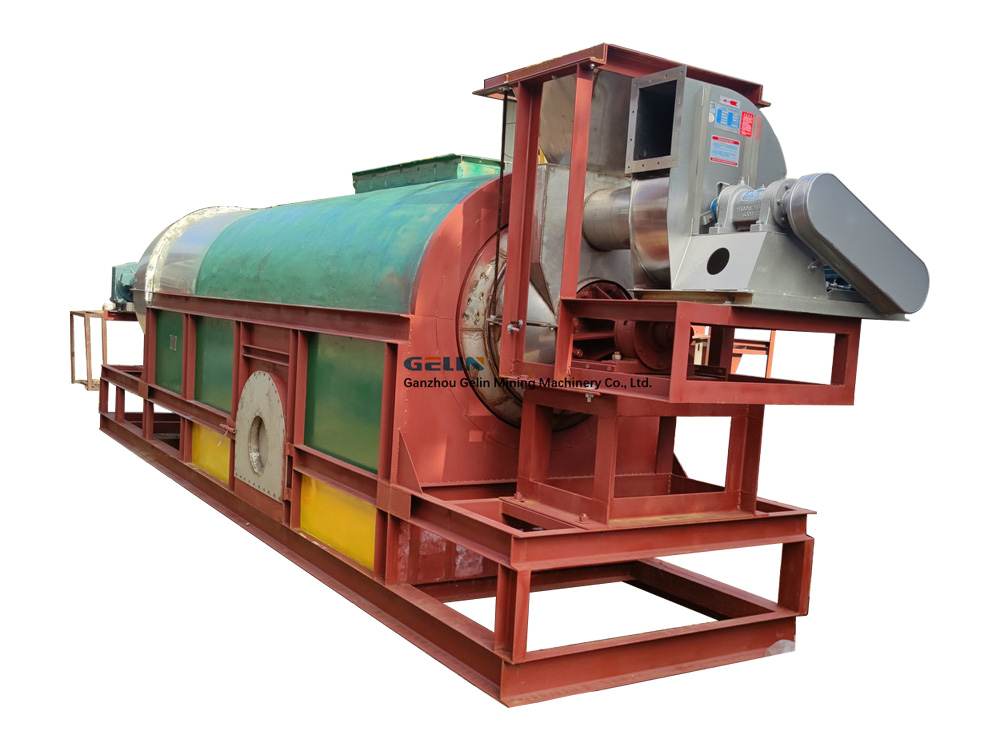

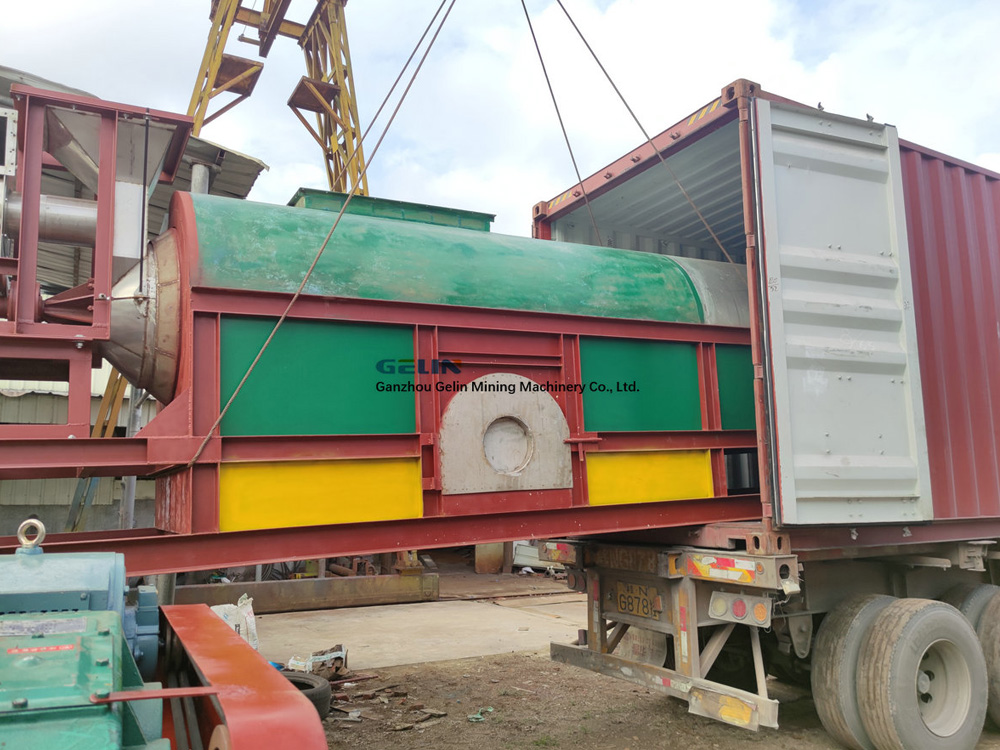

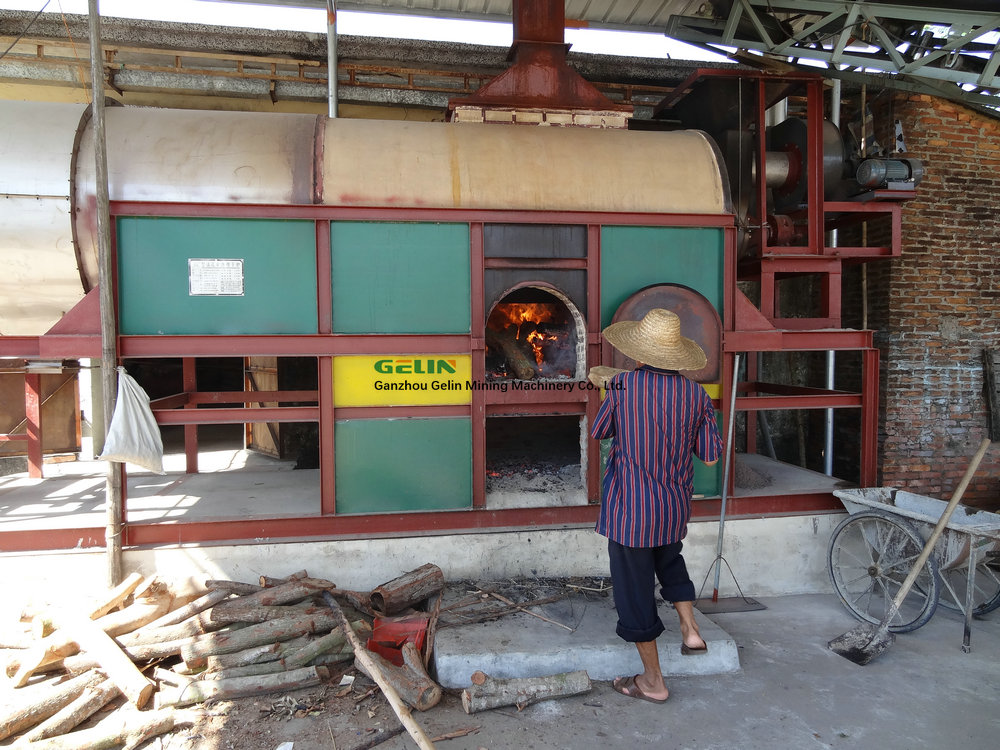

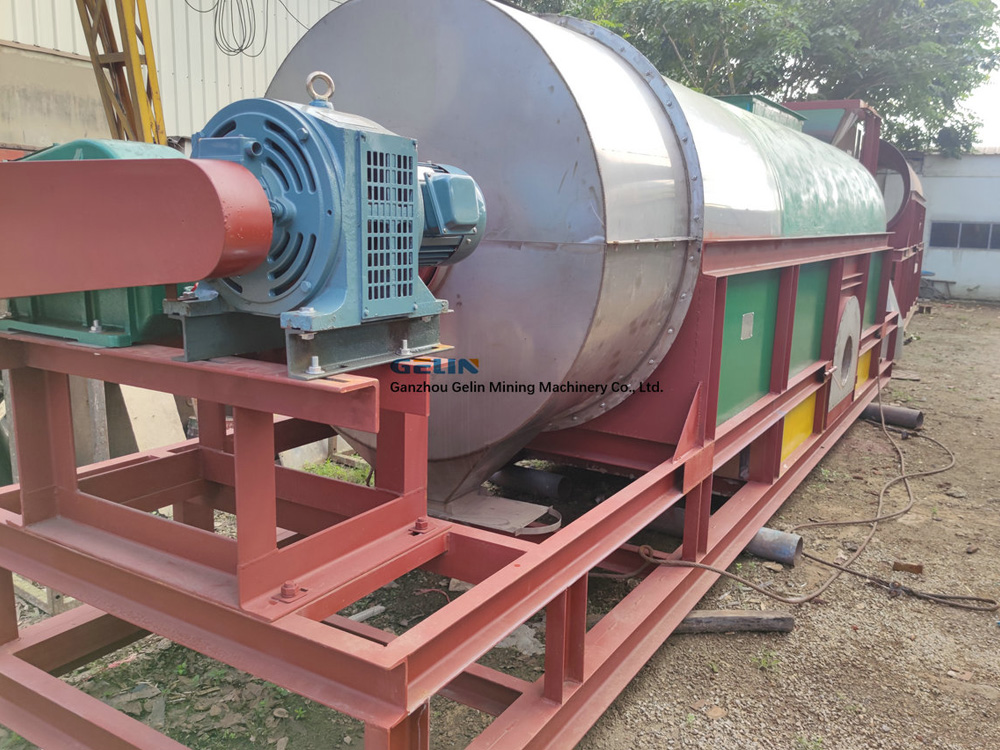

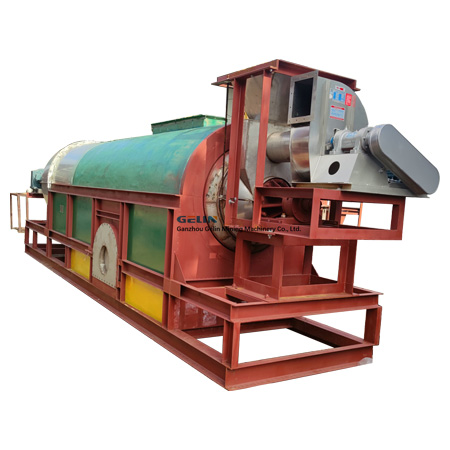

Detail Pictures
